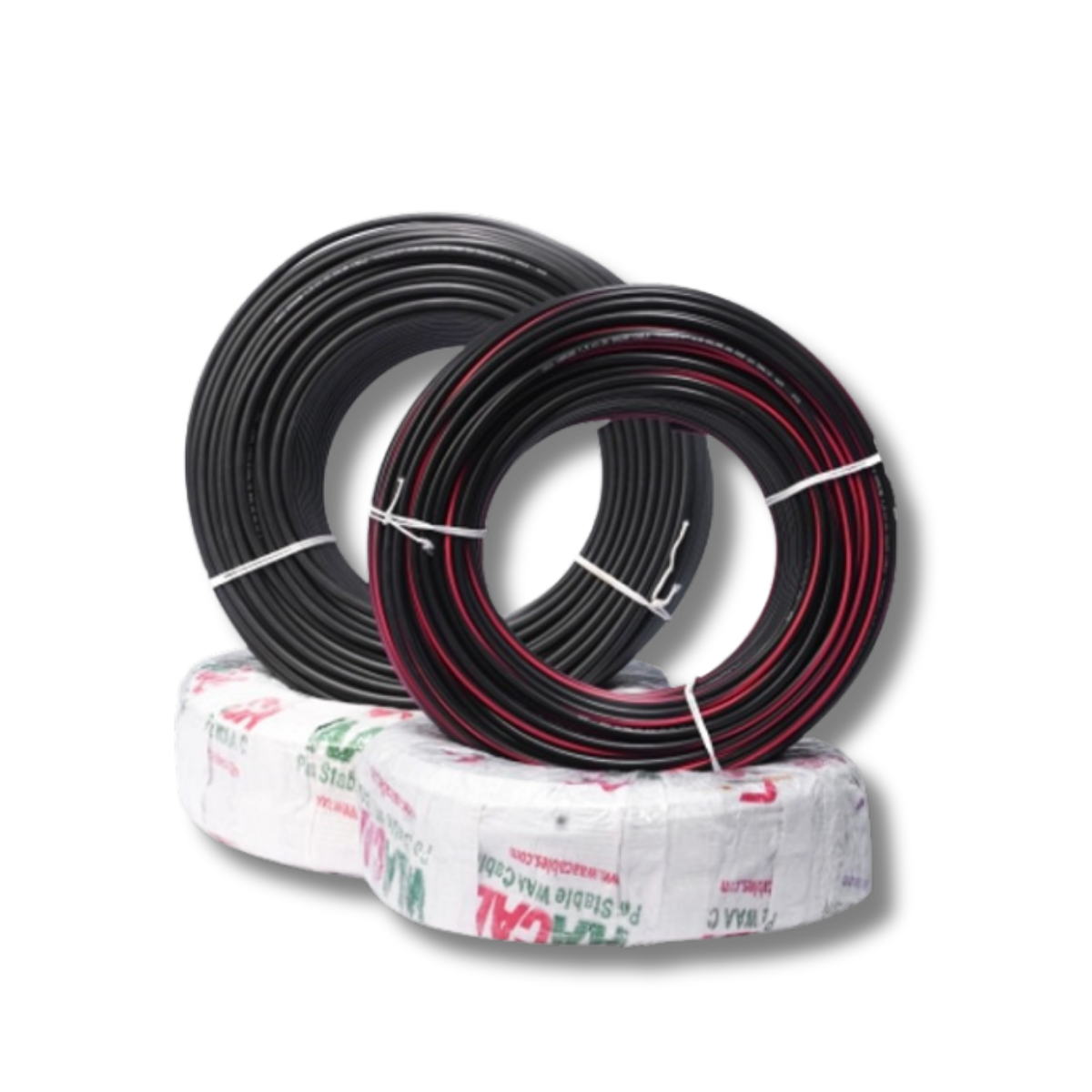

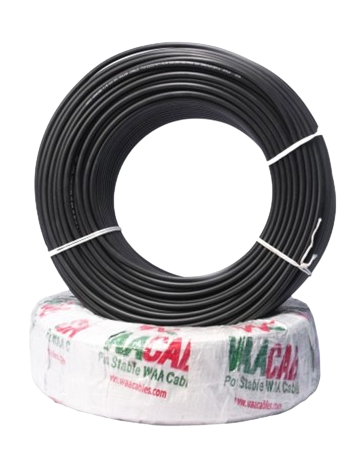

DC Cable: 4 Sq mm
Product specs: As per Standard IEC 60228 and EN 50618
Technical specs:
- SKU: SDCR 1 CORE X 4 SQMM BLACK
- Weight: 6.00 KGS
- Packaging Type: Roll
- Conductor Material: Copper
- Ideal For: Solar System
DC Cable: 6 Sq mm
Product specs: As per Standard IEC 60228 and EN 50618
Technical specs:
- SKU: SDCR 1 CORE X 6 SQMM BLACK
- Weight: 8.00 KGS
- Packaging Type: Roll
- Conductor Material: Copper
- Ideal For: Solar System

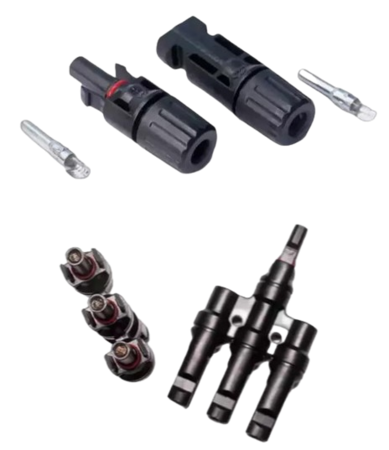

MC4 Connectors
LQ 1, 2 in 1 Branch Connector, 3 in 1 Branch Connector, 4 in 1 Branch Connector, 5 in 1 Branch Connector, Fuse Connector, Y Connector
Technical specs:
- Copper with Tin Plated
- 30 A
- 1500 V DC
- IP68

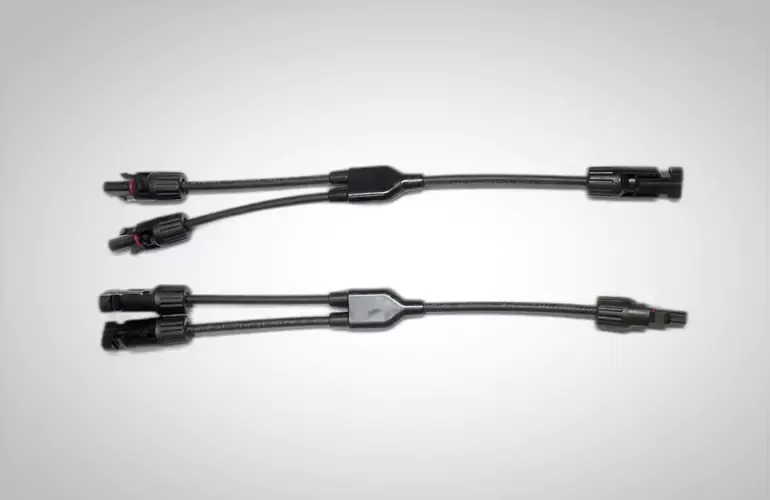

SOLAR MTC 4 CONNECTOR (LQ-1Y) Y Connector
Solar connectors facilitate electrical connectivity in solar energy systems. Numerous versions of connectors & standard non-connector junction boxes are employed in the solar industry and are the primary characteristic elements of solar modules.
Product specs:
- Rated Voltage: 1000V / 1500V DC for high-performance solar PV systems
- Rated Current: 30A–45A (suitable for 4mm² / 6mm² solar cables)
- Protection Rating: IP67 waterproof & dustproof (in mated condition)
- Material: Tinned copper contacts with UV-resistant PPO insulation
- Application: Used for parallel connection of solar panels (MC4 compatible)

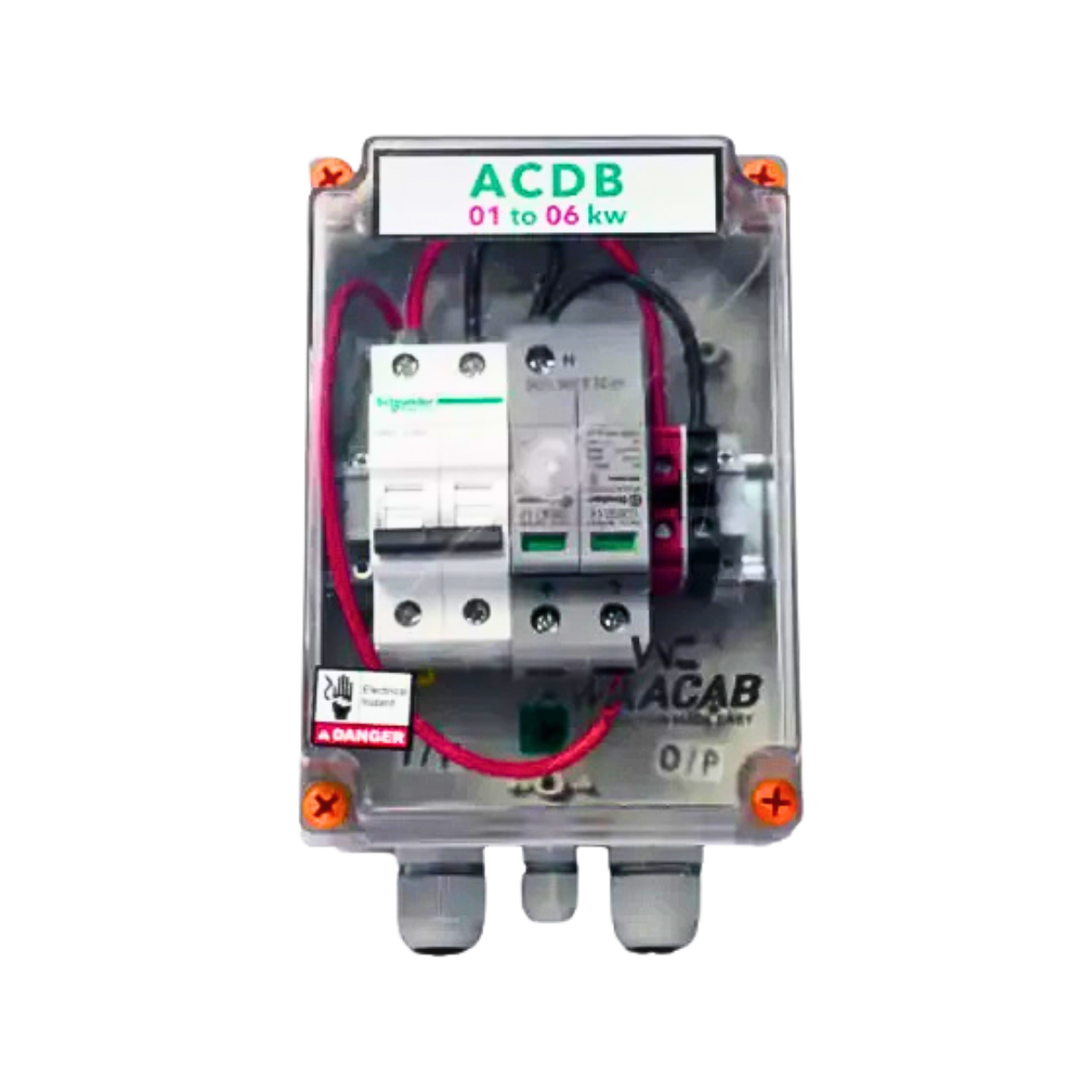

ACDB 1ph 32A 1In 1Out
Technical specs:
- AC Distribution Box for 1 KW- 5 KW solar project
- 1ph 230 Volt
- MCB: 25 A, 2 Pole
- SPD Rating: Phase 335V, Neutral 260VAc
- Box Size: 180X130X100mm (IP 65/66)
- AC Cable – 4 Sqmm
- Terminal Connector – 6 Sqmm – 41A
- With Red Phase Indicator

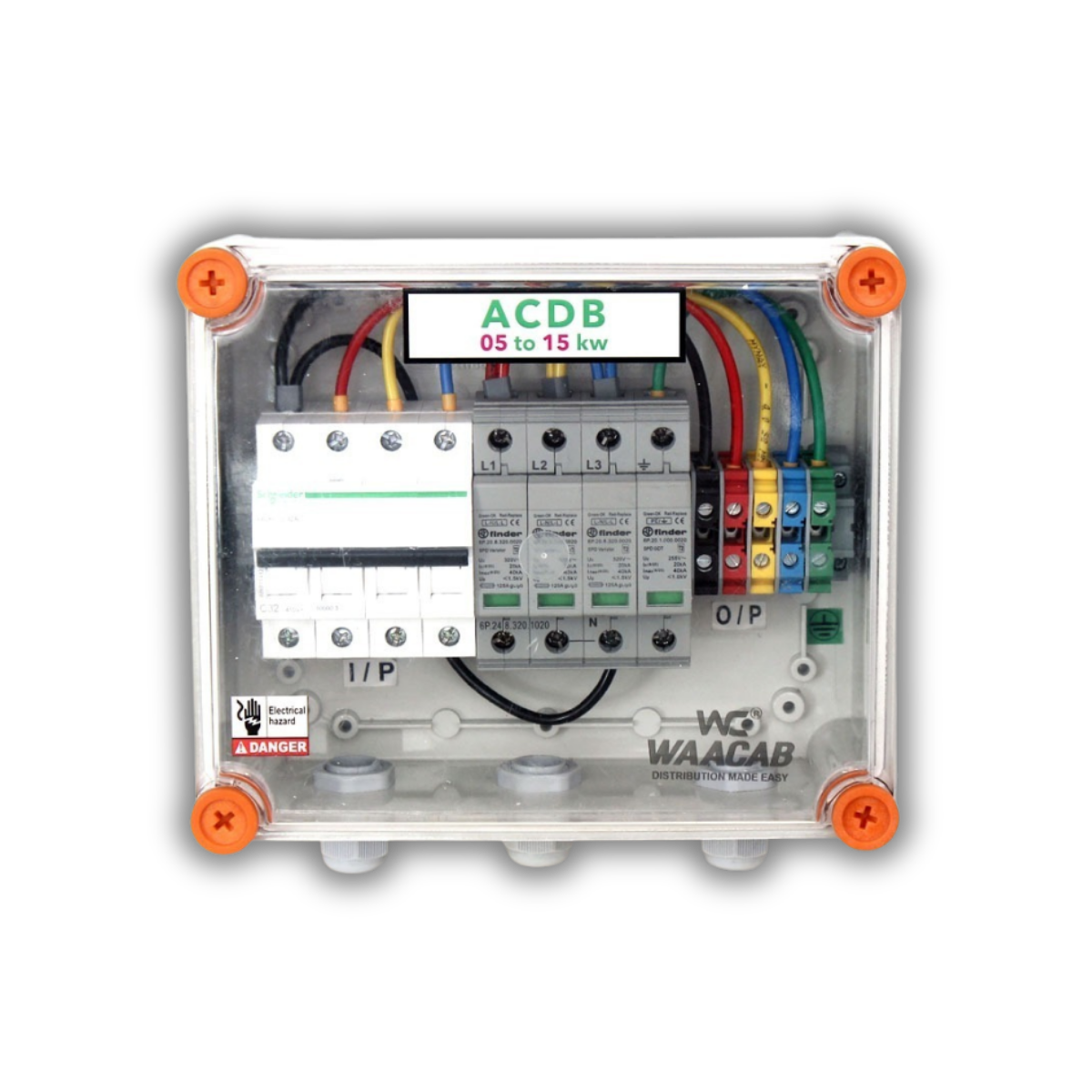

ACDB 3ph 32A 1In 1Out
Technical specs:
- AC Distribution Box for 4 KW- 12 KW solar project
- 3ph 415-440 Volt
- MCB: 32 A, 4 Pole
- SPD Rating: Phase 335V, Neutral 260VAc
- Box Size: 220X190X100 mm (IP 65/66)
- AC Cable – 6 Sqmm
- Terminal Connector – 16 Sqmm – 75A
- With R-Y-B Phase Indicator

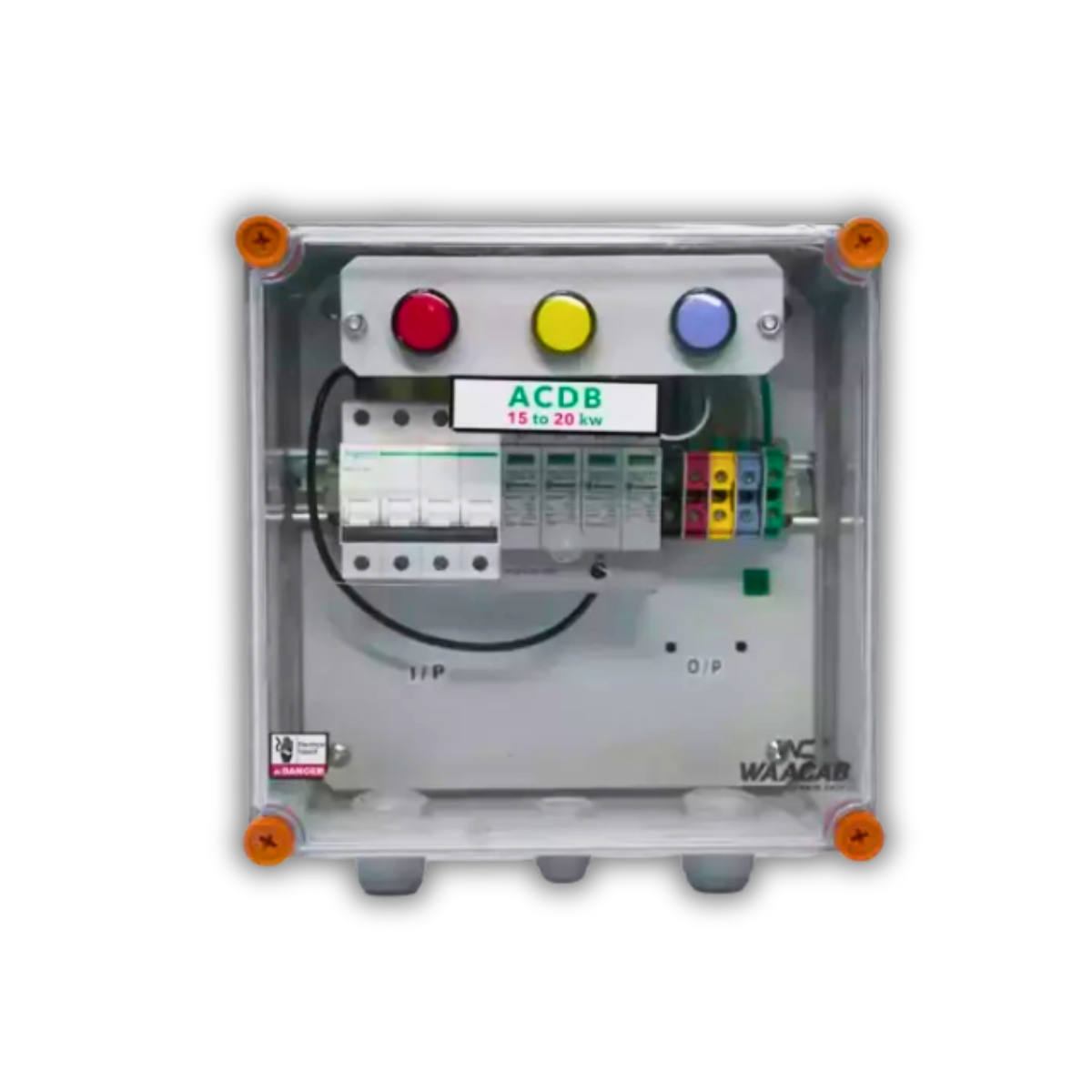

ACDB 3ph 40A 1In 1Out
Technical specs:
- AC Distribution Box for 15 KW- 20 KW solar project
- 3ph 415-440 Volt
- MCB: 40 A, 4 Pole
- SPD Rating: Phase 335V, Neutral 260VAc
- Box Size: 280X190X130 mm (IP 65/66)
- AC Cable – 10 Sqmm
- Terminal Connector – 16 Sqmm – 75A
- With R-Y-B Phase Indicator
ACDB 3ph 63A 1In 1Out
Technical specs:
- AC Distribution Box for 20 KW- 25 KW solar project
- 3ph 415-440 Volt
- MCB: 63 A, 4 Pole
- SPD Rating: Phase 335V, Neutral 260VAc
- Box Size: 280X280X130 mm (IP 65/66)
- AC Cable – 10 Sqmm
- Terminal Connector – 16 Sqmm - 75A
- With R-Y-B Phase Indicator

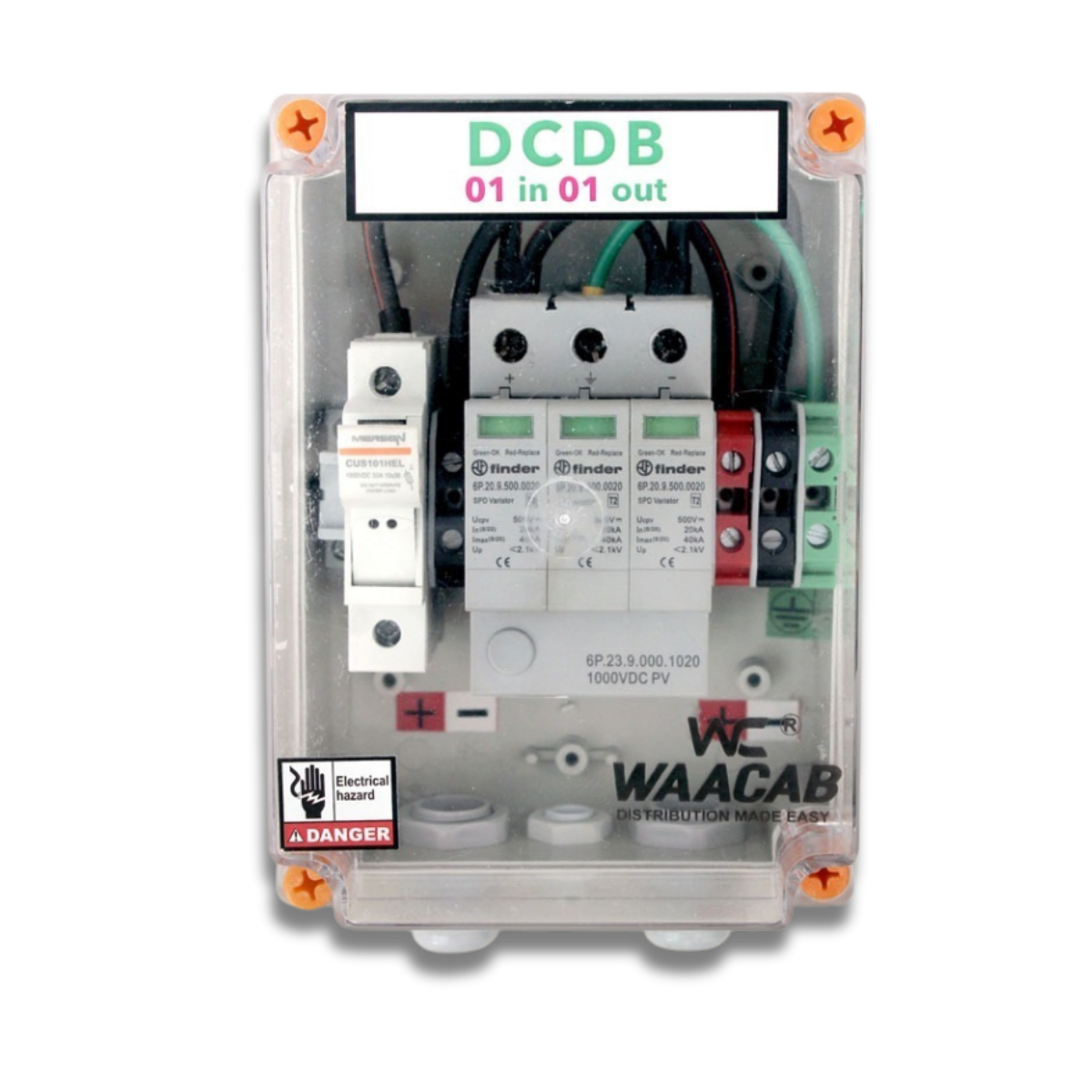

DCDB 1 In 1 Out 1 Spd 1000v
Technical specs:
- DC Distribution Box for 1Kw - 3KW solar project
- 1 In 1 Out
- 1 SPD: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder - 30A
- Box Size: 180X130X100 (IP 65/66)
- DC Cable: 4 sq mm
DCDB 1 In 1 Out 1 Spd 600v
Technical specs:
- DC Distribution Box for 1Kw - 5KW solar project
- 1 In 1 Out
- 1 SPD: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder - 30A
- Box Size: 180X130X100 (IP 65/66)
- DC Cable: 4 sq mm

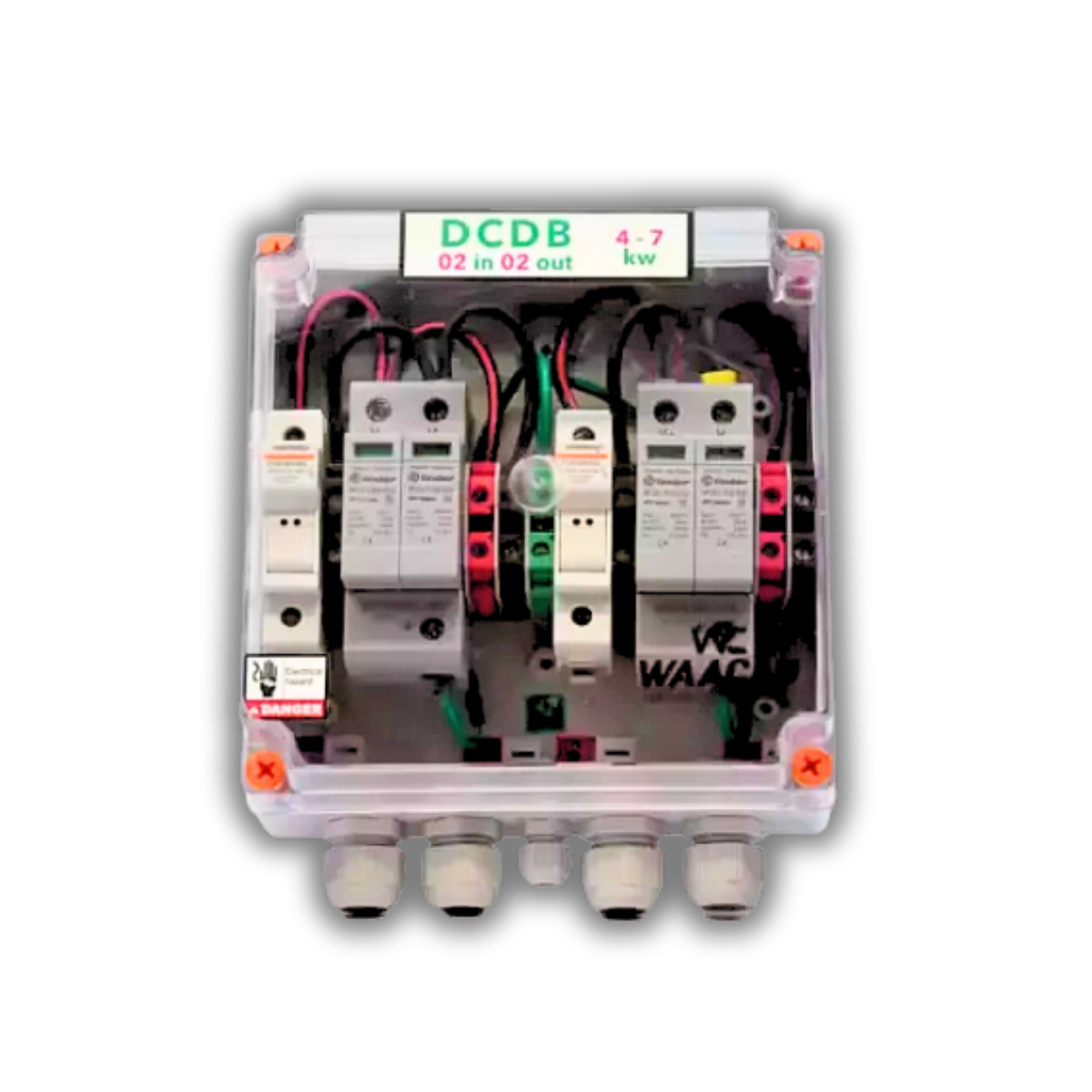

DCDB 2 In 2 Out 2 Spd 1000v
Technical specs:
- DC Distribution Box for 4Kw - 12KW solar project
- 2 In 2 Out
- 2 SPDs: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder- 30A
- Box Size: – 220X190X100 (IP 65/66)
- DC Cable: 4 sq mm
DCDB 2 In 2 Out 1 Spd 1000v
Technical specs:
- DC Distribution Box for 4Kw - 12KW solar project
- 2 In 2 Out
- 2 SPDs: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder - 30A
- Box Size: – 220X190X100 (IP 65/66)
- DC Cable: 4 sq mm

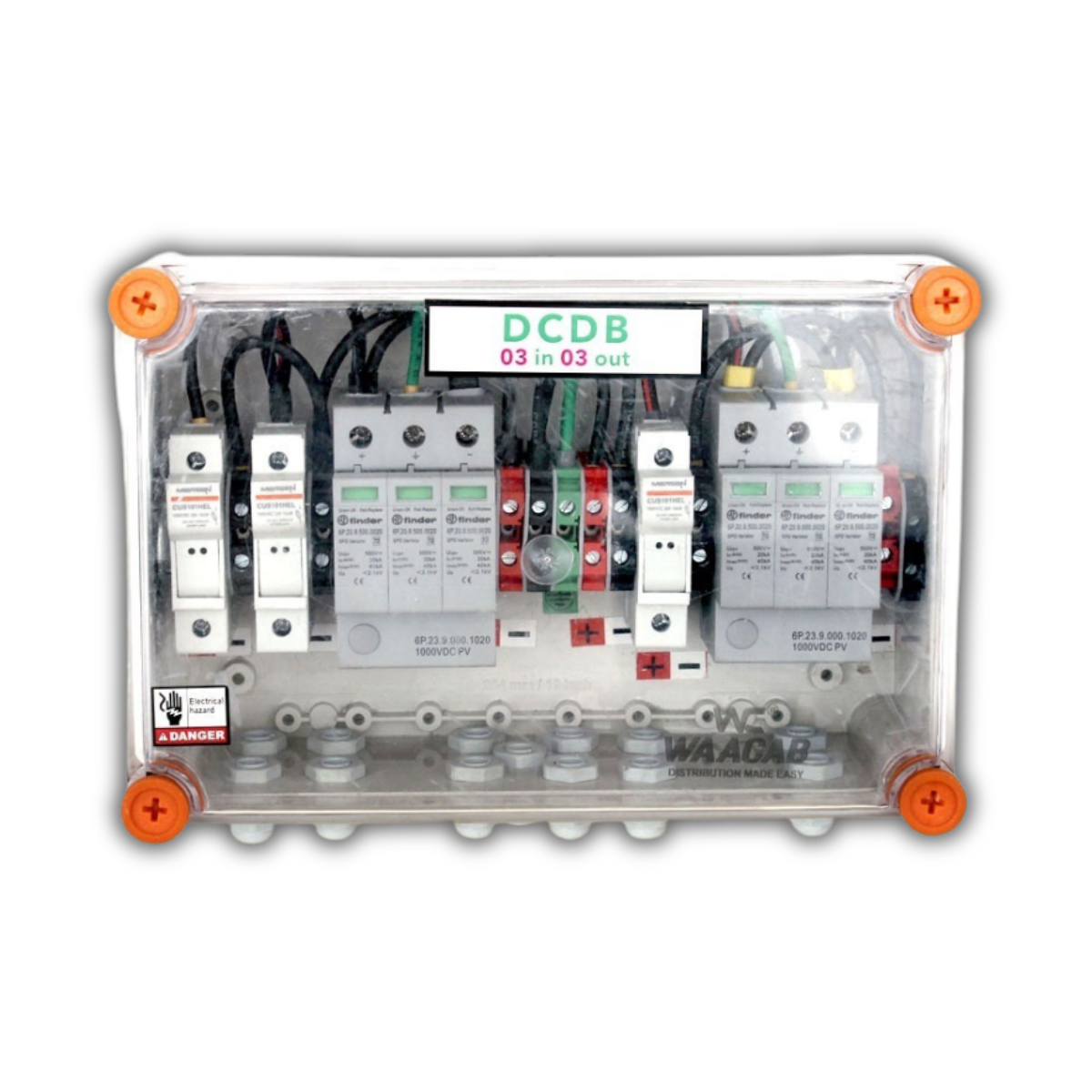

DCDB 3 In 3 Out 3 Spd 1000v
Technical specs:
- DC Distribution Box for 12Kw - 17KW solar project
- 3 In 3 Out
- 3 SPDs: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder- 30A
- List Box Size: – 280X280X130(IP 65/66)
- DC Cable: 4 sq mm
DCDB 3 In 3 Out 2 Spd 1000v
Technical specs:
- DC Distribution Box for 12Kw - 17KW solar project
- 3 In 3 Out
- 2 SPDs: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder - 30A
- Box Size: – 280X280X130(IP 65/66)
- DC Cable: 4 sq mm

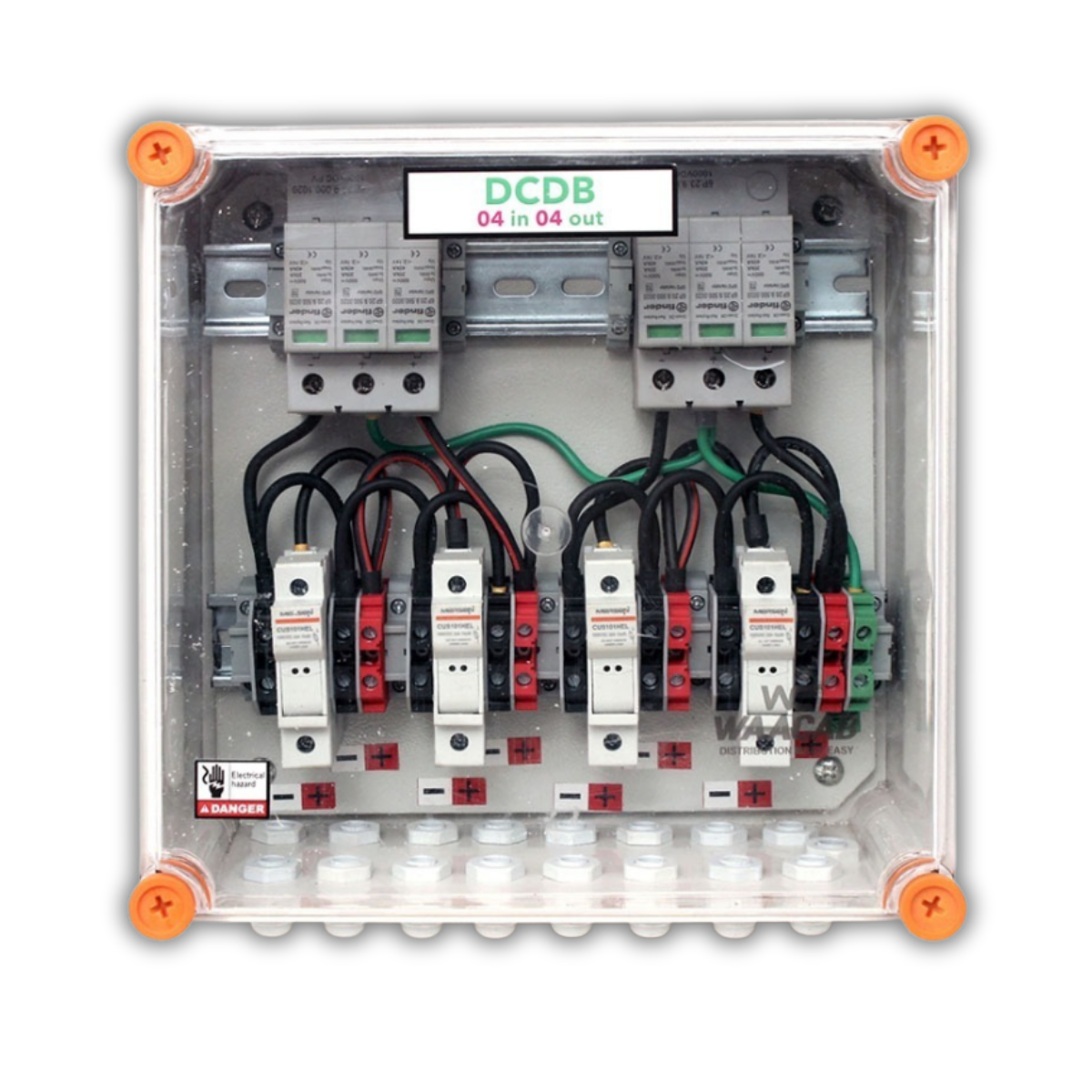

DCDB 4 In 4 Out 4 Spd 1000v
Technical specs:
- DC Distribution Box for 20Kw - 25KW solar project
- 4 In 4 Out
- 4 SPDs: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder - 30A
- Box Size: – 280X280X130(IP 65/66)
- DC Cable: 4 sq mm
DCDB 4 In 4 Out 2 Spd 1000v
Technical specs:
- DC Distribution Box for 20Kw - 25KW solar project
- 4 In 4 Out
- 2 SPDs: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder - 30A
- Box Size: – 280X280X130(IP 65/66)
- DC Cable: 4 sq mm
