Type 2 AC SPD is designed to protect electrical systems from transient surges caused by lightning strikes and switching operations. It offers high discharge capacity, fast response time, and reliable voltage protection, ensuring safety for sensitive equipment. The compact DIN rail mountable design makes it ideal for AC distribution boards and industrial control panels.
Elmex
Authorised Channel Partner

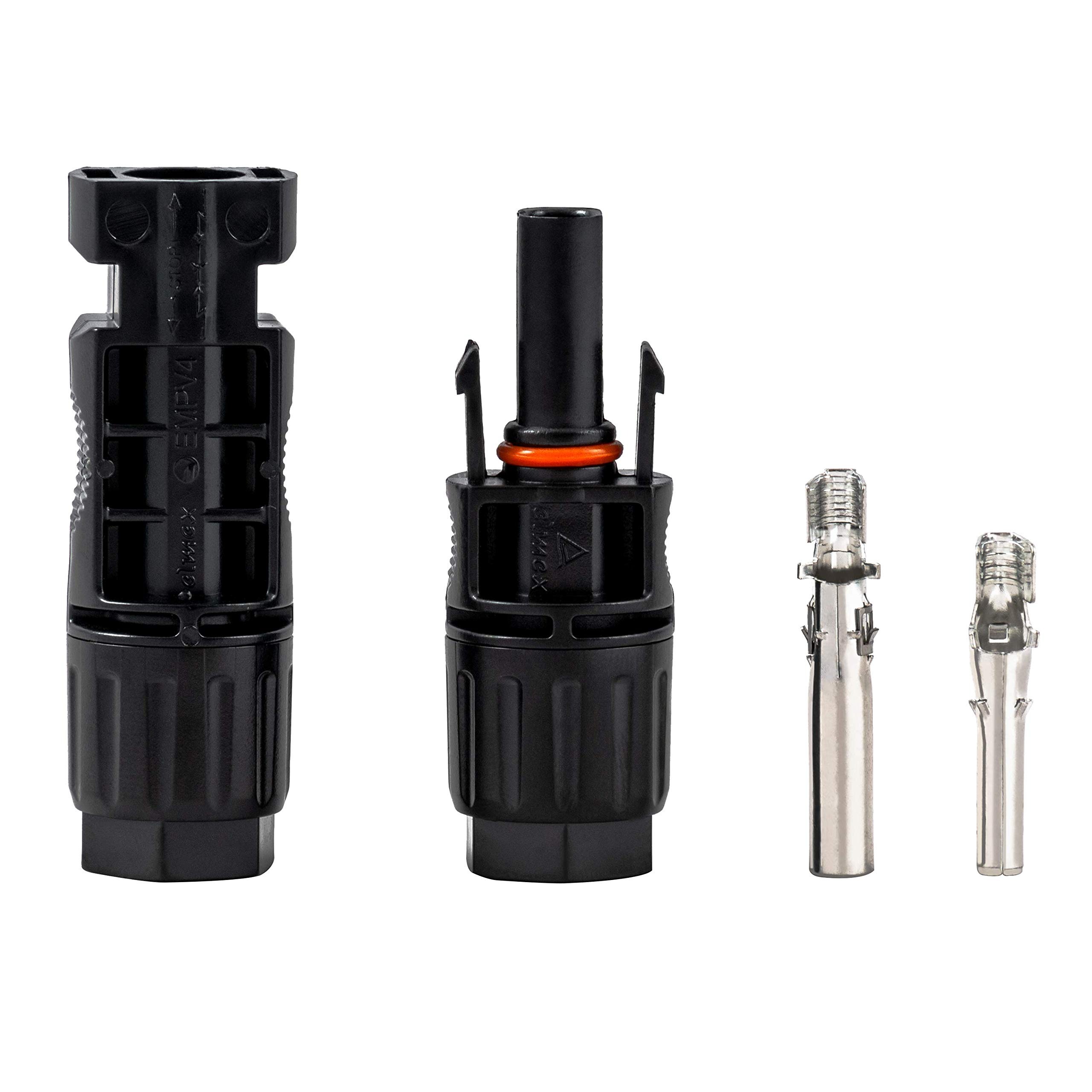

Elmex MC4 Connector
Product specs:
- High-quality copper contacts with tin plating for excellent conductivity
- 30A
- 1500 V DC
- IP68 protection – waterproof & dustproof
- Easy installation with strong locking system
- Suitable for all types of PV modules and cables
Solar Fuse Terminal Block - 1000V
The ElmexPV Solar Fuse Terminal Block is designed for safe and reliable protection of photovoltaic (PV) strings in solar power systems. Rated at 1000V DC and 32A, it supports 10×38 mm gPV fuses and ensures secure DIN rail mounting inside combiner boxes and DC distribution panels. Ideal for rooftop and utility solar installatio
Technical specs:
- 1000 V DC for photovoltaic string protection
- 32 A DC
- IP20 (indoor protection rating)
- Supports 10 × 38 mm gPV cylindrical fuse
- Mounting & Size: DIN channel mount, 78 × 62 × 18 mm

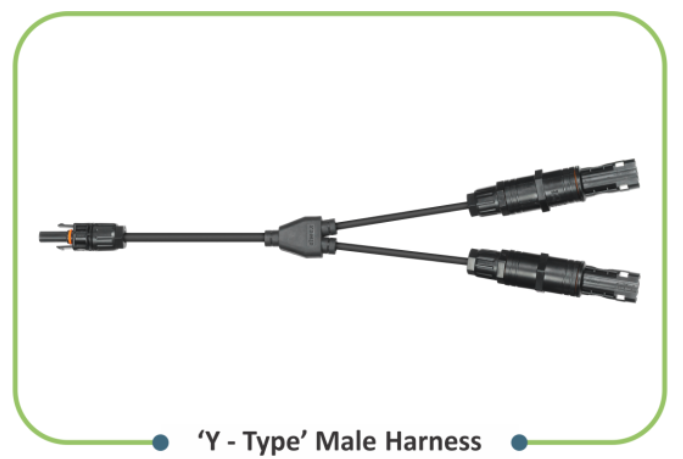

Solar Over Moulded Wire Harnesses with Fuse 1500 V
Solar Over Moulded Wire Harnesses with Fuse 1500 V from Elmex are rugged, pre-assembled DC cable assemblies designed for high-voltage photovoltaic (PV) systems. They feature integrated over-moulded connectors with inline fuse protection, offering secure, weather-resistant power distribution and simplified plug-and-play installation for solar panels
Technical specs:
- 1500 V DC for high-voltage solar PV systems
- 30 A DC for string over-current protection
- IP20 indoor rated terminal block.
- Supports ø 10 × 85 mm gPV cylindrical fuse
- DIN rail (CHK/CHKS) installation.

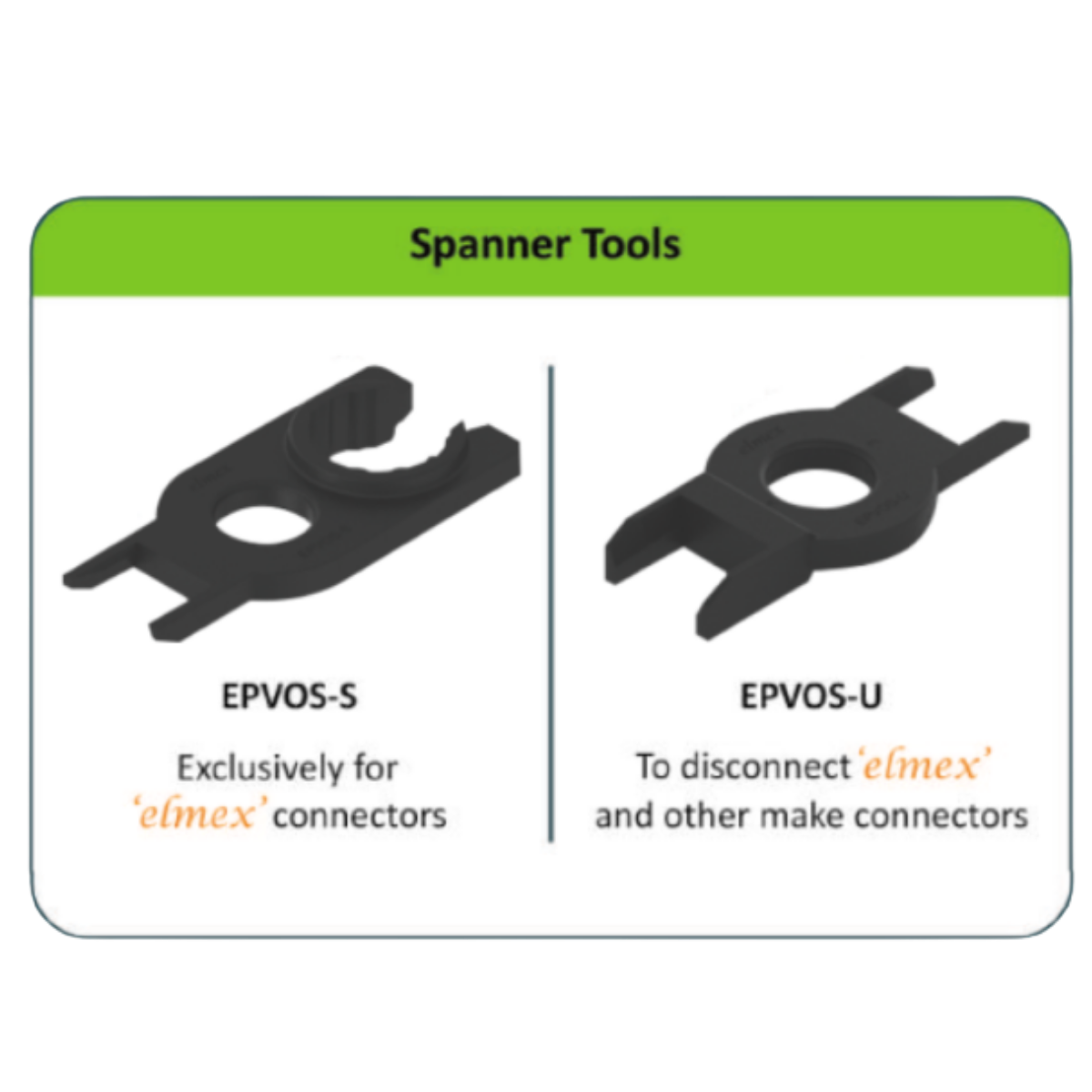

Solar Product Accessories Spanner Tools
Elmex Solar Spanner Tools are specially designed for safe and secure tightening of solar connectors in PV systems. Made from high-quality, durable material, these tools ensure firm locking and easy unlocking of connectors during solar panel installation and maintenance.
Product specs:
- Designed for precise tightening and loosening of solar DC connectors
- Ensures secure and reliable connection in solar PV systems
- Made from strong, durable, and wear-resistant material
- Provides safe installation without damaging connectors
- Ideal for solar panel installation and maintenance work

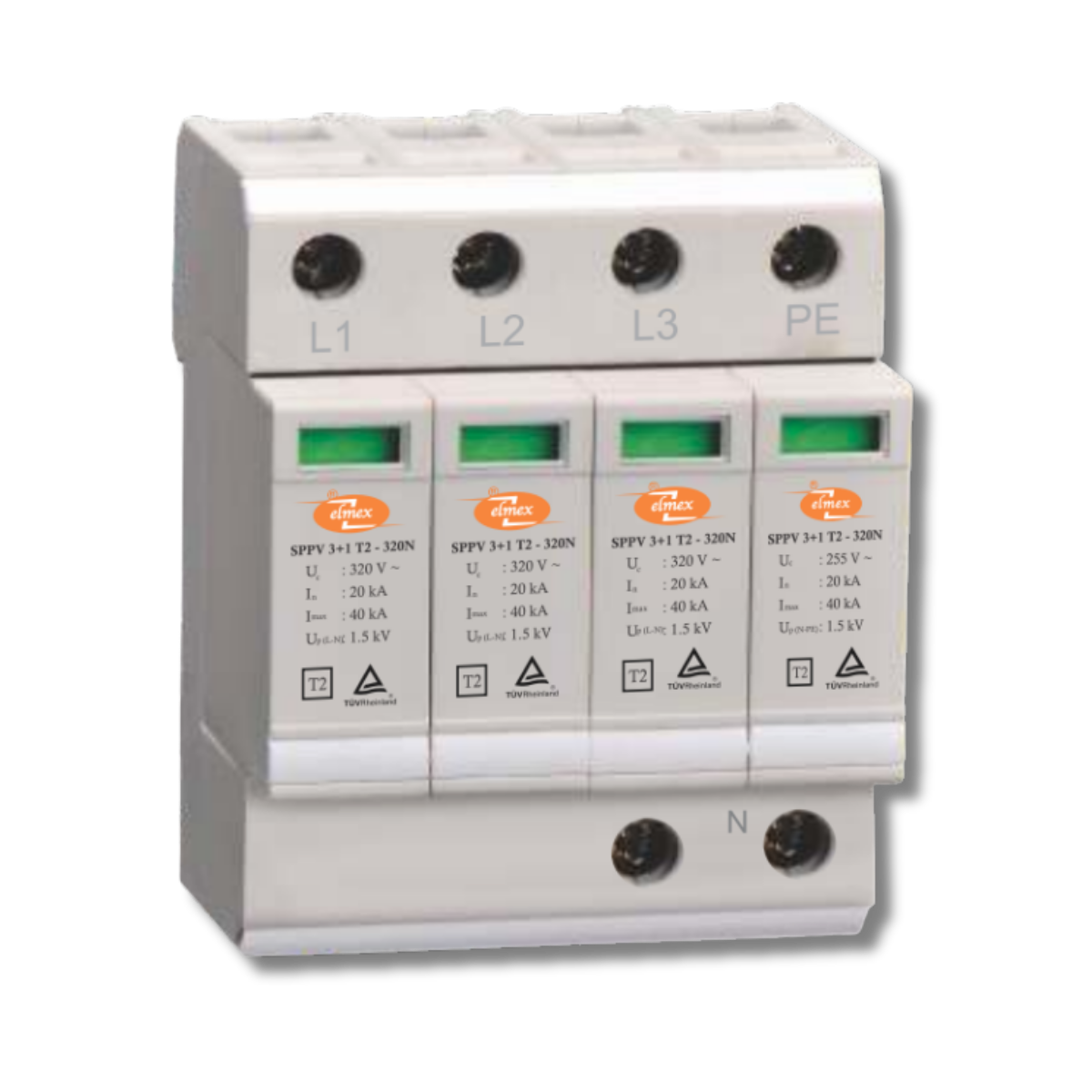

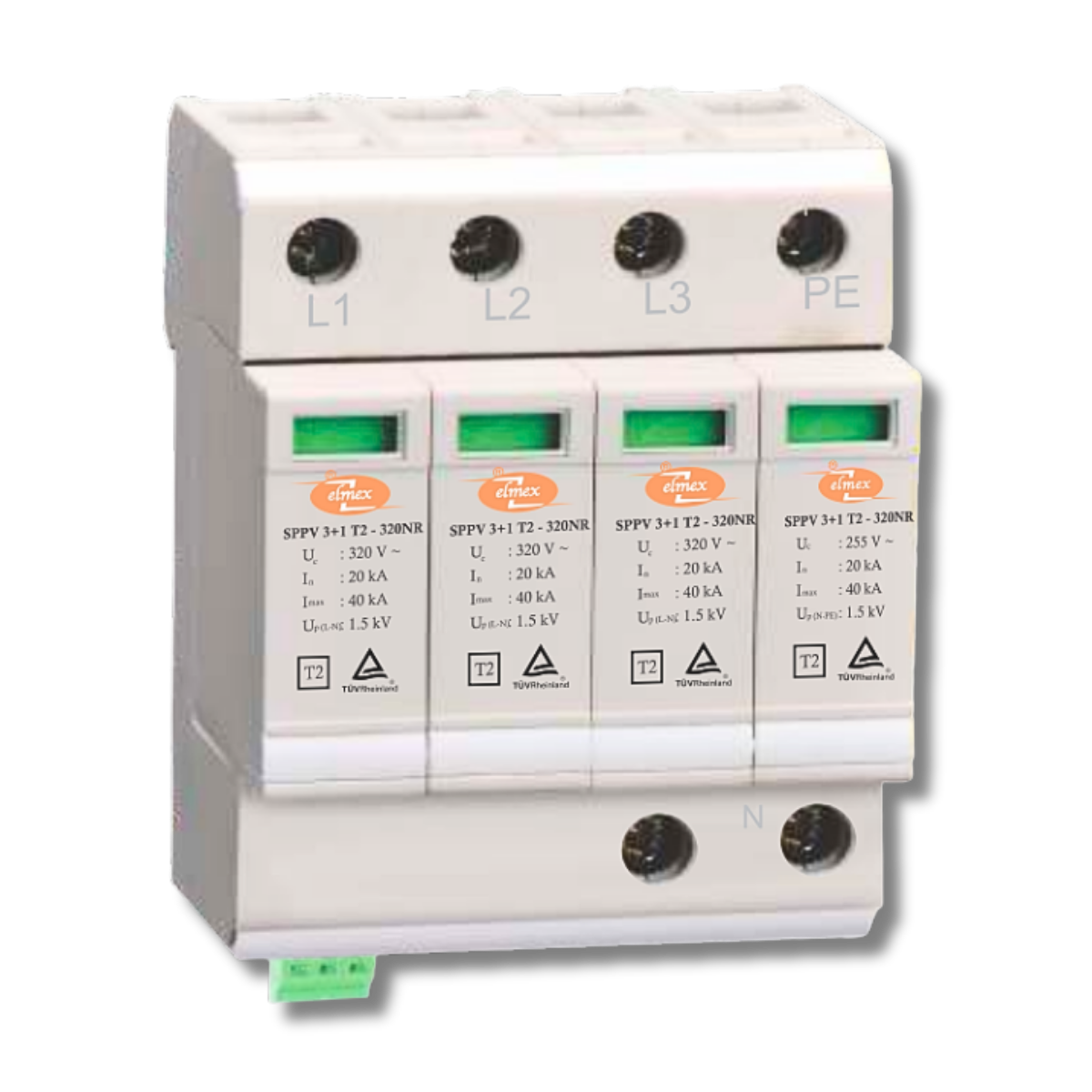

Type 2 AC (SPD)
Product Features:
- 230 V AC (operating voltage for standard AC systems)
- 320 V AC
- Up to 20 kA nominal (8/20 µs waveform)
- ≤ 1.5 kV (limits transient voltage)
- ≤ 25 ns (fast protection against surges)
- −40 °C to +70 °C

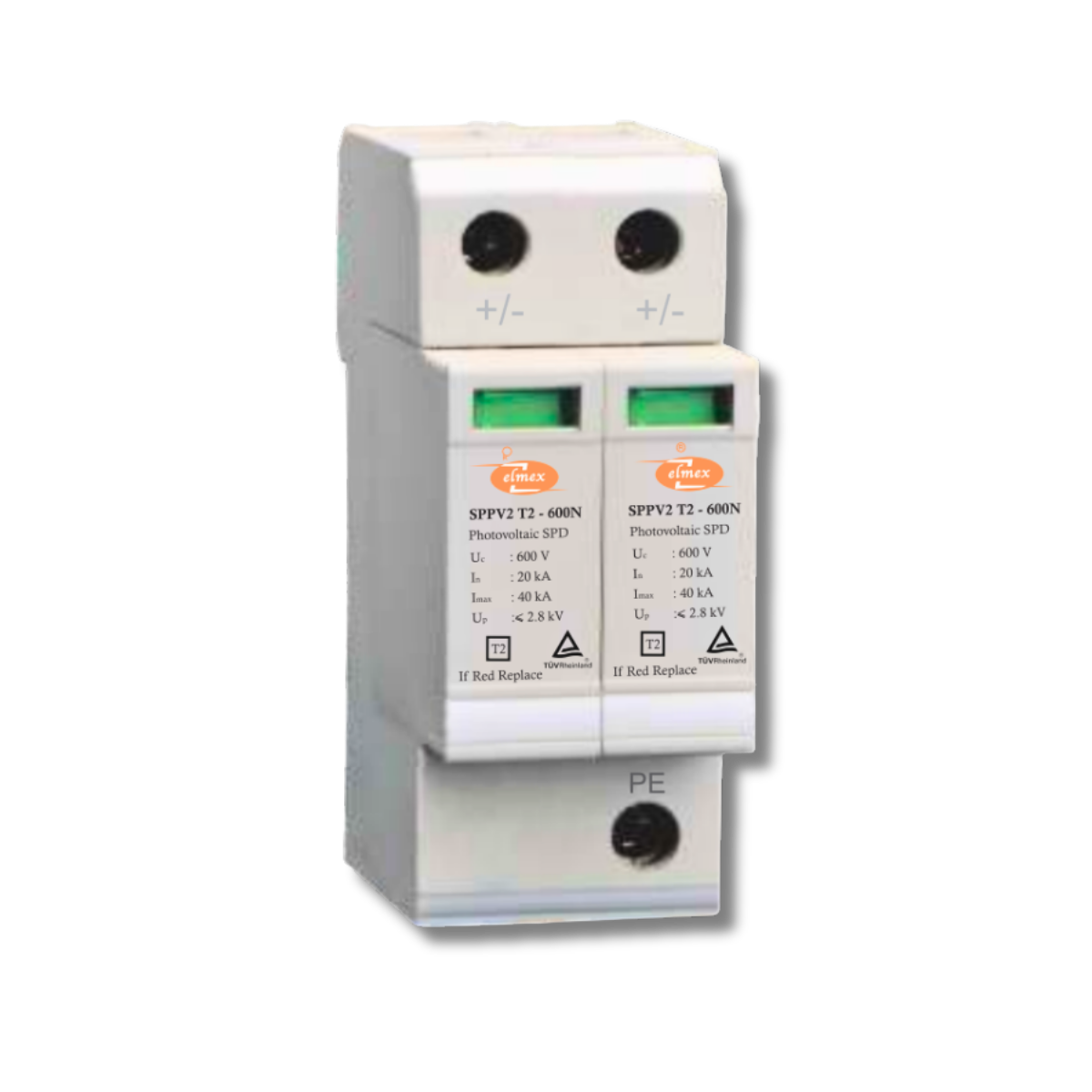

Type 2 DC (SPD)
Type 2 DC SPD is specially designed to protect solar PV systems and DC installations from lightning-induced surges and transient overvoltages. It provides high discharge capacity, fast response time, and stable voltage protection to safeguard inverters, combiner boxes, and DC equipment. Its compact, DIN rail mountable design ensures easy installation and reliable long-term performance in solar applications.
Product Features:
- 1000 V / 1200 V DC (typical for solar PV systems)
- Matches system DC voltage rating
- 10 kA – 20 kA (8/20 µs waveform)
- Up to 40 kA (8/20 µs)
- ≤ 1.8 kV – 2.0 kV
- ≤ 25 ns – fast transient suppression
- −40 °C to +85 °C

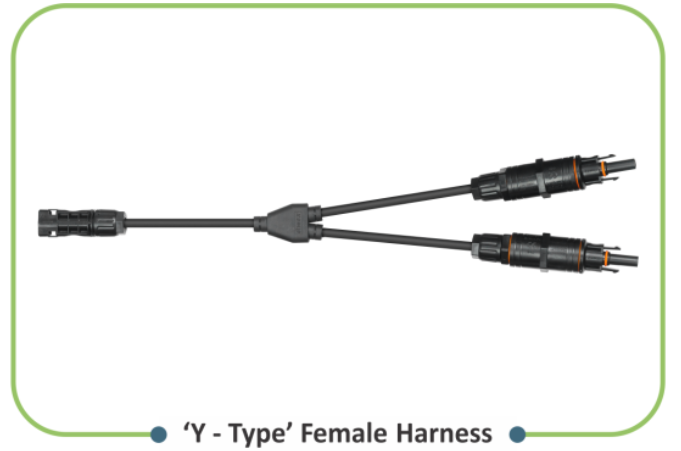

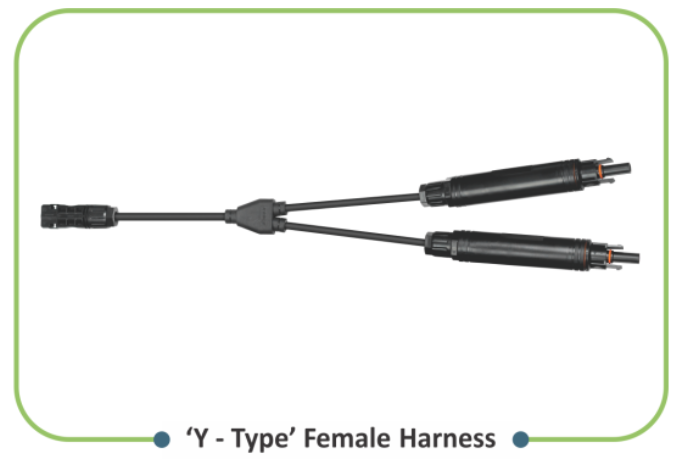

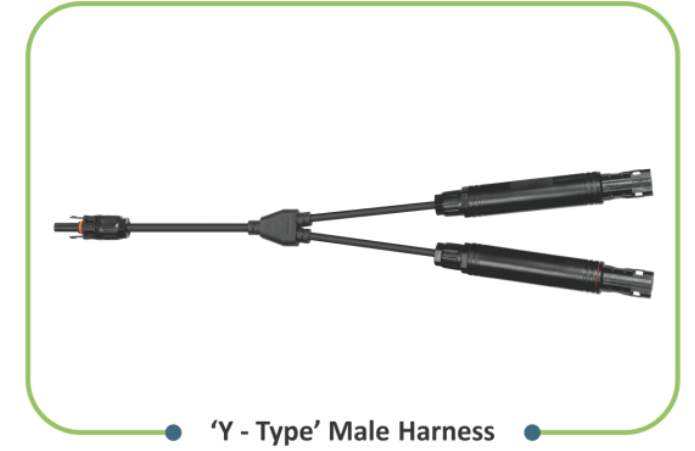

Solar Over Moulded Wire Harnesses with Fuse 1000 V
Elmex Solar Over-Moulded Wire Harnesses with Fuse (1000 V) are robust, pre-assembled solar cable assemblies designed for safe and reliable DC power distribution in photovoltaic systems. Built with integrated over-moulded connectors and a protective fuse, they ensure high-voltage protection, weather resistance, and easy plug-and-play installation for solar panel arrays.
Technical specs:
- 1000 V DC (suitable for photovoltaic systems
- Copper with tin plating (for low resistance and reliable contact)
- 6 kV (withstand test)
- IP 68 (dust-proof and waterproof when mated)
- 2.5 mm² / 4.0 mm² / 6.0 mm² solar cable options

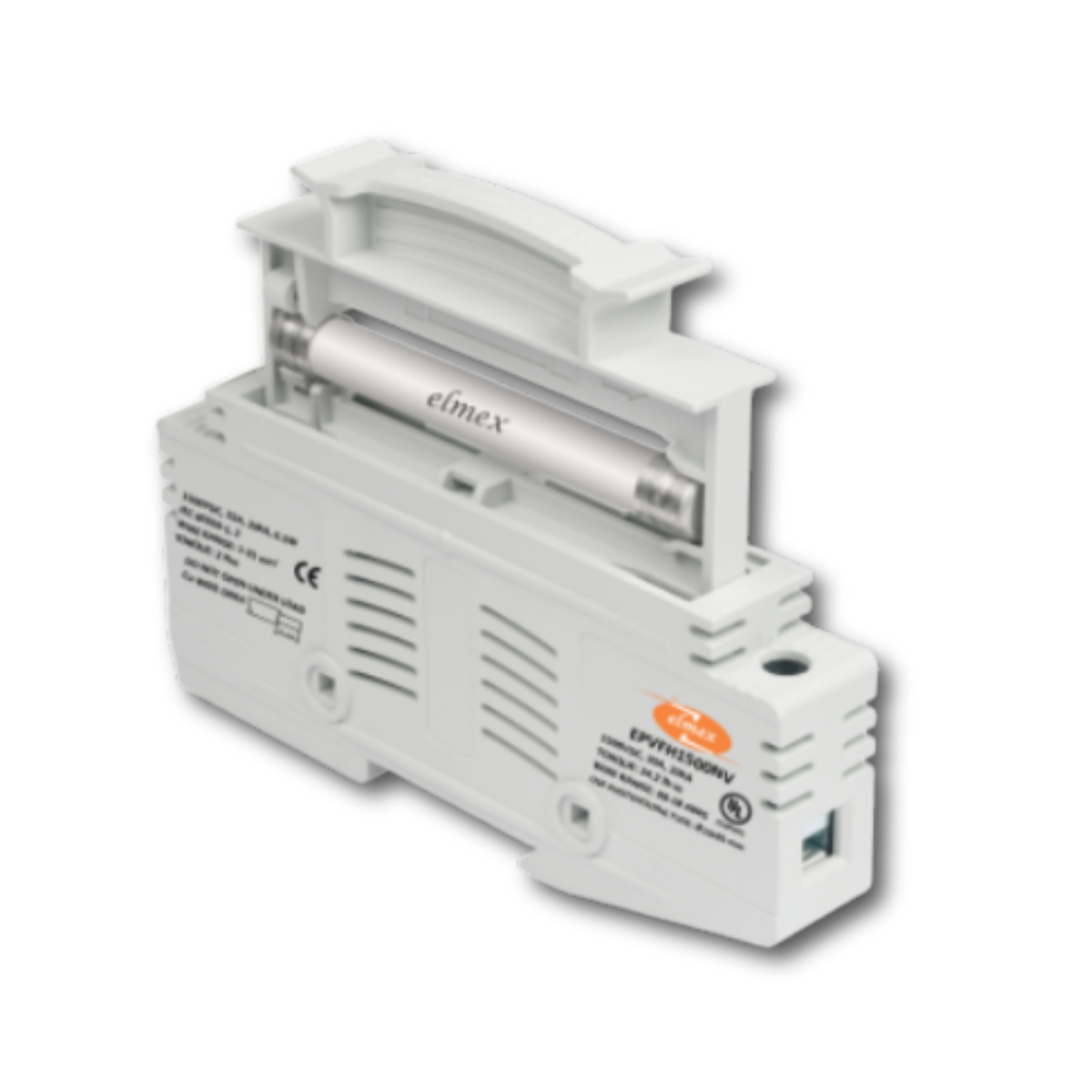

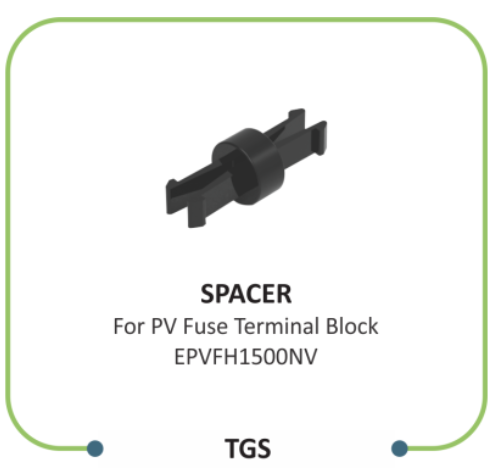

PV Solar Fuse Terminal Block 1500V
The PV Solar Fuse Terminal Block (1500V DC) is designed for reliable over-current protection in high-voltage photovoltaic (PV) systems. Ideal for string combiner boxes and DC distribution panels, it supports gPV cylindrical fuses (10×85 mm) and ensures safe DIN rail mounting. Built for durability and stable performance in utility-scale and commercial solar installations.
Technical specs:
- 1500 V DC for high-voltage photovoltaic applications
- Up to 30 A for safe power handling
- 8 kV withstands high electrical stress during testing
- IP68 – water and dust resistant when mated
- Works with 2.5 mm², 4.0 mm², and 6.0 mm² conductor sizes with snap-in locking

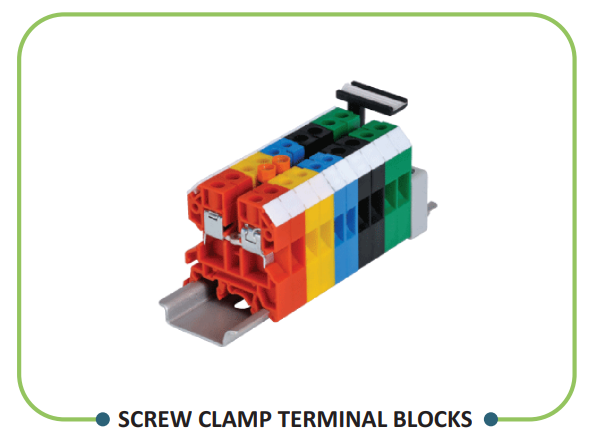

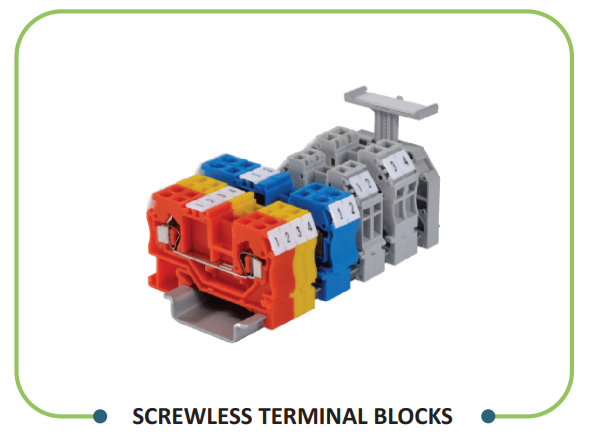

Terminal Blocks for PV Applications
Terminal Blocks for PV Applications are specially designed for safe and reliable DC connections in solar power systems. They provide secure termination for solar strings, support high-voltage applications (up to 1000V/1500V DC), and ensure efficient power distribution inside combiner boxes, inverters, and DC distribution panels. Ideal for rooftop and ground-mounted solar projects, they enhance safety, durability, and easy maintenance.
Technical specs:
- 1000V / 1500V DC (solar PV system compatibility)
- 25A – 125A+ depending on model and application
- High-quality flame-retardant PA66 / UL94 V-0 polymer housing
- Screw / Spring / Screwless terminals for secure conductor clamping
- 40°C to +105°C for reliable performance in harsh outdoor environments
